High Breeze 100



The Power Collection - Create & Design Your Customized Ceiling Fan!

Select your blade style by clicking on the dropdown menu.

Build your ideal fan, by clicking on your preferred component buttons

For information & to assist you in selecting the correct componentsclick on the green ‘i button’.

Adjust your quantity in the table & add to cart

Please Select Blade Style:

Blade Set

Blade Set



Each Blade Set is Precisely Balanced which ensures wobble free operation.

3 & 4 Blade Sets Only.

More Blades does not always mean more air delivery.

Air delivery and fan speed vary greatly depending on the number of blades, blade sweep and blade material.

These Blades are designed to move air at lower speeds.

4 blades can be more aesthetically pleasing than 3 blades.

Please Select Blade Set

Blade Sweep - Overall Diameter,
blade tip to blade tip

Blade Sweep



Blade Sweep is the overall diameter from blade tip to blade tip.

Oversized Aesthetically beautiful Blades for larger areas.

Two Blade sweeps available for each blade profile

1. Palm Leaf & Tear Drop - 1500mm & 1800mm

2. Bent - 1500mm & 2000mm

Because of the oversize blades the fan will move at slower speeds providing gentle cooling air delivery.



Please Select Blade Sweep

Motor Model

Motor Model

The Power Collection - 3 Year Warranty

A fully customisable collection to meet all style and decor needs.

Energy saving 75 watt motor
Light kit adaptable
Reverse option available

Installation must be done by a certified Electrician.

Please select a motor model

Motor Model Colour

Motor Model Colour

Select Motor Model to see motor colours offered.

1. Standard - Black & White
2. Antique - Bronze, Gold & Silver
3. Trend - All colours detailed

Specialised colours are available on request.



Please select a motor model colour

Regulators

Regulators

Aesthetically pleasing Flush or Surface mount.

5 Speed with or without a light switch.

Light Switches or Dimmers can be added

To add a regulator not offered in the selection to your Request select the option "Regulator Specialised Options" complete the Cart. In the View Cart section click on "Continue Request" or "Continue Shopping" then click on "Quote on Regulator" or "Buy Remote or Regulator" select your Regulator "Add to Cart", "Complete your Request" or "Check Out"

Customised Cover plates and colours are available on request.

Single Regulator
Reg2F can only operate one fan.

Multiple Regulators
Not available

Please Select a Regulator

Remotes

Remotes

The Handheld Transmitter and the U-Shaped Receiver unit of the Solent 5 speed Remote Control must be paired after installation.

  • Within 30 seconds from the power being switched on, press the FAN OFF button until the light on the fan flashes once and the fan starts rotating. Pairing is now complete.
  • There are 5 Timers - The Timer must be set while the fan is in rotation and it can be set on any speed.
  • Press the desired Timer to put the fan in sleep mode and the fan will turn off when the selected Timer is reached.
  • Do not use a remote simultaneously with a wall regulator.
  • Reverse option can be used by installing a 2 way toggle switch in the bottom canopy.
  • Room lights can be operated by the Remote L5 and LD5.
  • Maximum light load - 300 watts. (6 x 50watt down-lighters).
  • Dimmer remote to be used with dimmable energy saving lamps. Use Solent LD5 remote control to dim Solent LED Dimmable Light Kit.
  • Battery supplied - Your remote control is ready for use after battery installation.

Please Select a Remote

Light Kits

Light Kits

Light kits are:

  • Optional
  • Easy to fit
  • Match the colour of the motor.
  • Compatible with High Breeze, High Breeze 100 & Senorita fans.

Lights can be switched off via a separate light switch on the wall regulator or by a Remote.

Lamp holders are suitable for incandescent & Energy Saving Lamps. Lamps NOT included.

Bella - 3 x GU10 Lamp holders suitable for 50 watt Halogen or Compact Fluorescent & LED lamps.

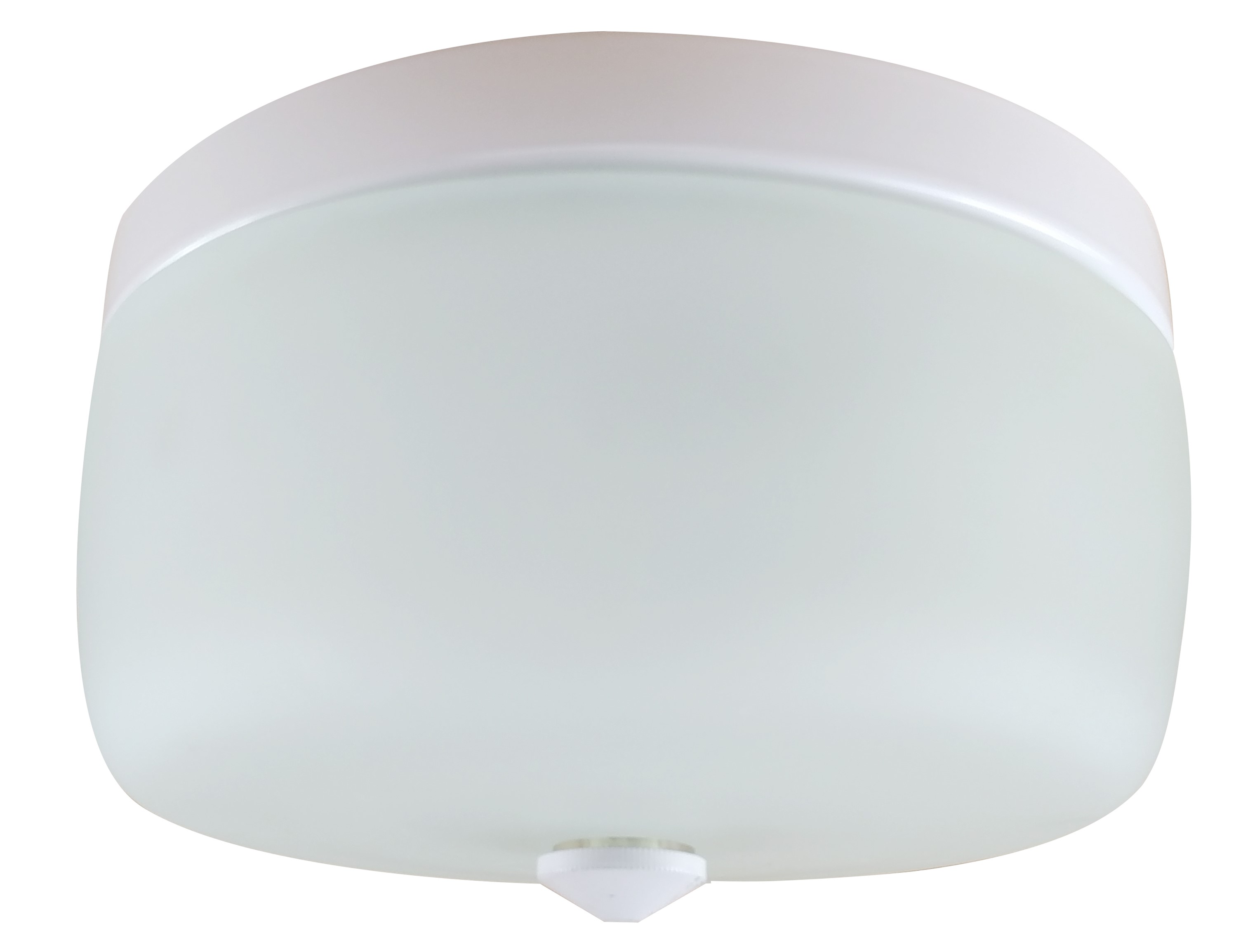

Cleo, Oyster & Tara - 2 x ES lamp holders suitable for 60 watt incandescent or Compact Fluorescent & LED Lamps.

LED - Multi-colour SMD (surface mount device) with 3 interchangeable colour options, switch the light button on the RemoteL5, off and on, to change the colours.

  • Colour Render - 2835 RA 85
  • 22 Watt
  • 2200 Lumens

Interchangeable Colours:

  • 3000K: Warm White
  • 4000K: Neutral White
  • 6000K: Cool White

Please Select a Light Kit

Down Rods

Down Rods

For Safety reasons fan blades should not be lower than 2300mm above floor level.

Maximum Height Installation
There is no restriction. However too high will affect the cooling efficiency.

Angled or Vaulted Ceilings
Install a wedge that provides a horizontal surface for attaching the downrod.

  • Standard 230mm downrod & hanging hook are supplied with each fan.
  • Optional 450mm & 900mm downrods available.
  • Customised lengths up to 6 metres are available.

Formula for calculating customised lengths

D (downrod length) =
X (Floor to ceiling height) minus
2300mm (Minimum Blade height or selected height above floor level) minus
170mm (motor measurement & hanging assembly)

D = X - 2300 -170

To add MULTIPLE down rods of various LENGTHS Select the option Multiple Lengths & complete the cart. In the view cart section click on Continue Request or Continue Shopping then click on Quote on Down Rod or Buy Down Rod select your Down Rods Add to Cart Complete your Request or Checkout

Please Select a Downrod
